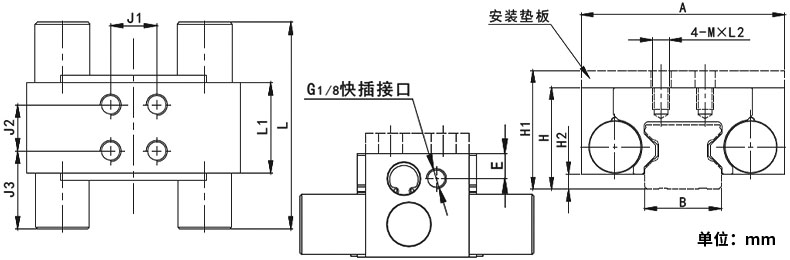

| 型号 | H | H1 | H2 | A | B | J1 | J2 | J3 | L | L1 | E | M | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPBS35R | 48 | 55 | 6 | 100 | 34 | 24 | 24 | 39 | 105 | 46 | 9 | M8 | 10 |
| CPBS45R | 60 | 70 | 9 | 120 | 45 | 26 | 26 | 44 | 117 | 51 | 12.5 | M10 | 15 |
| CPBS55R | 70 | 80 | 9 | 140 | 53 | 38 | 38 | 52.5 | 144 | 62 | 13 | M10 | 18 |
| CPBS65R | 90 | 13 | 150 | 63 | 38 | 38 | 52.5 | 144 | 62 | 20 | M10 | 19 | |
注：H1为钳制器与AN/HAN滑块配套使用加装安装垫板后的高度。
