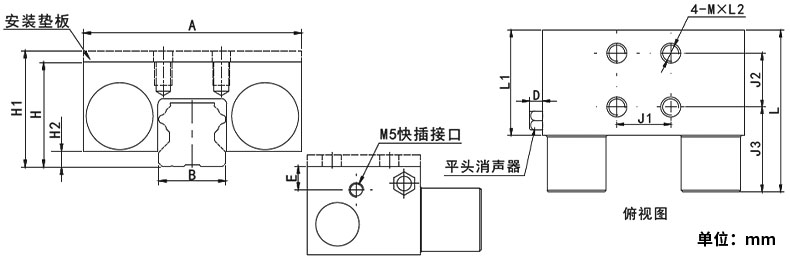

| 型号 | H | H1 | H2 | A | B | J1 | J2 | J3 | L | L1 | D | E | M | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

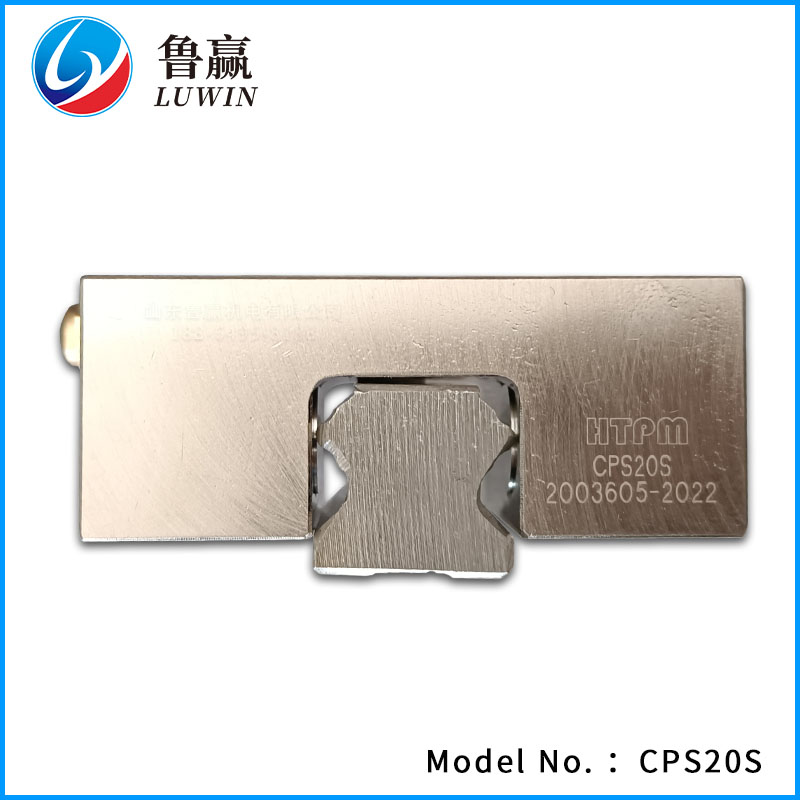

| CPS20S CPS20S-04 |
30 | - | 4 | 66 | 20 | 20 | 20 | 31.5 | 60 | 39 | 4.5 | 5.8 | M5 | 6 |

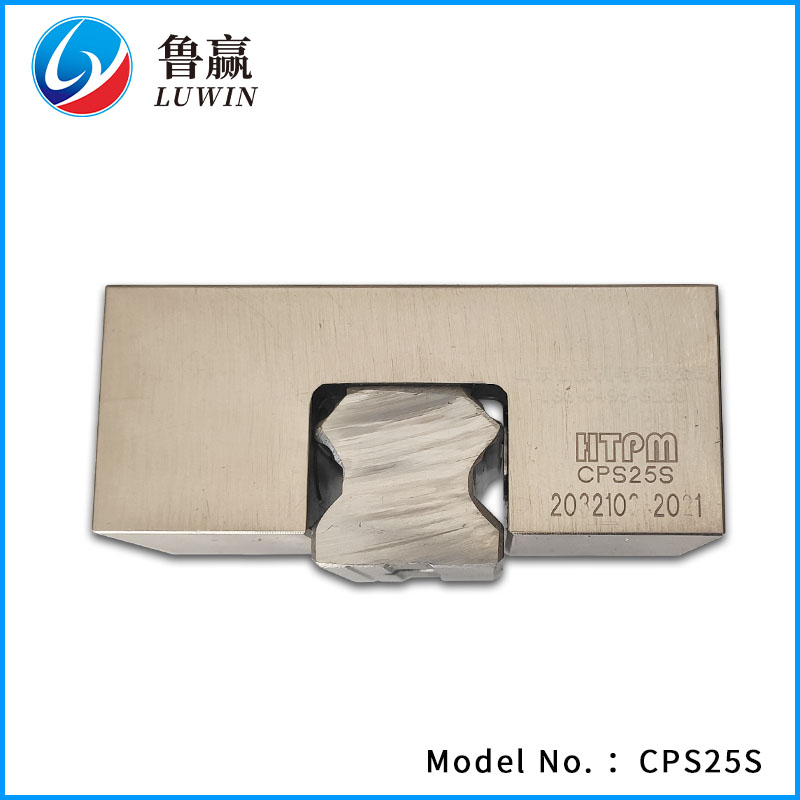

| CPS25S CPS25S-04 |
36 | 40 | 5.5 | 75 | 23 | 20 | 20 | 31.5 | 60 | 39 | 4.5 | 8.2 | M6 | 8 |
| CPS25W CPS25W-04 |
35 | - | 4.5 | 121 | 69 | 50 | 20 | 31.5 | 60 | 39 | 4.5 | 4.5 | M6 | 8 |
| CPS30S CPS30S-04 |
42 | 45 | 7 | 90 | 28 | 22 | 22 | 36.7 | 69.5 | 42 | 4.5 | 7.5 | M8 | 8 |

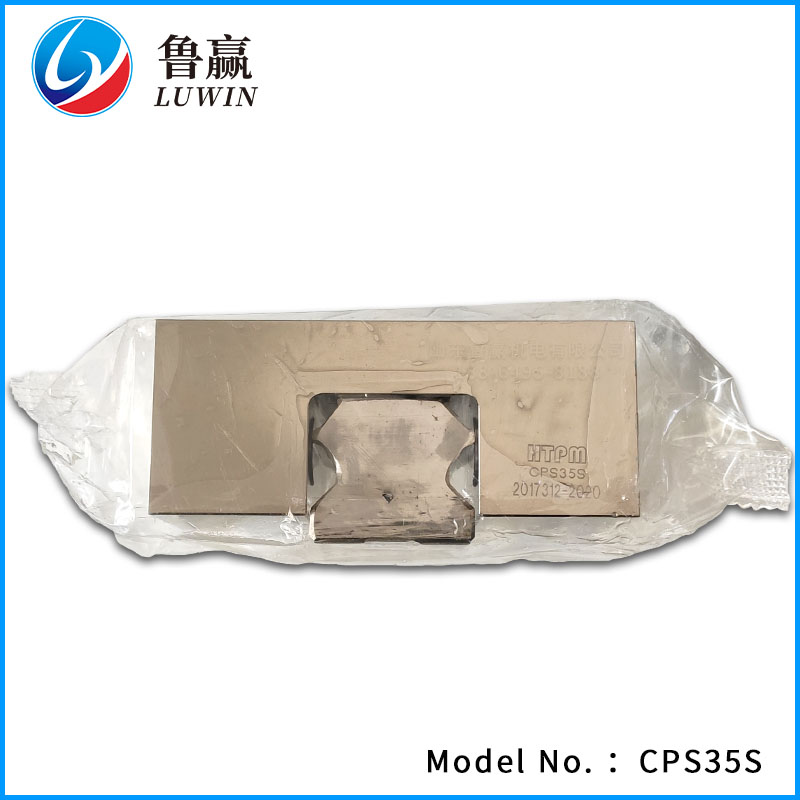

| CPS35S CPS35S-04 |
48 | 55 | 7 | 100 | 34 | 24 | 24 | 36.5 | 69.5 | 42 | 4.5 | 9 | M8 | 10 |

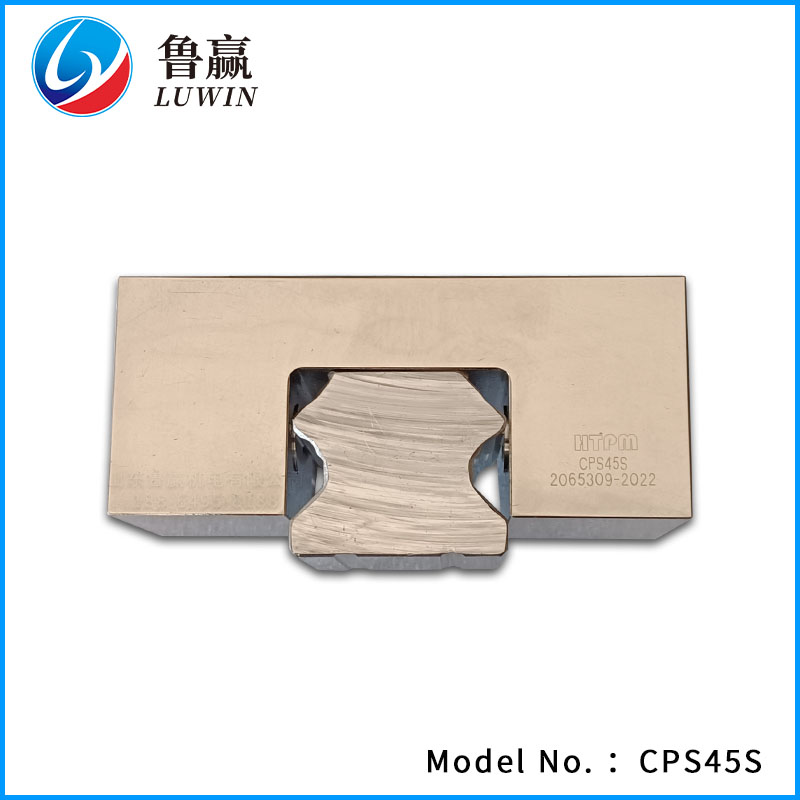

| CPS45S CPS45S-04 |
60 | 70 | 9 | 120 | 45 | 26 | 26 | 42 | 82.5 | 51 | 4.5 | 13 | M10 | 15 |
| CPS55S CPS55S-04 |
70 | 80 | 18 | 138 | 53 | 30 | 30 | 42 | 82.5 | 51 | 4.5 | 10 | M10 | 16 |
注：H11为钳制器与AN/HAN滑块配套使用加装安装垫板后的高度。“04”表示0.4MPa打开；无则表示0.55MPA打开。

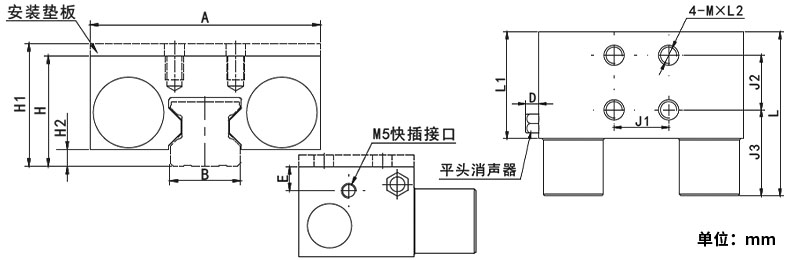

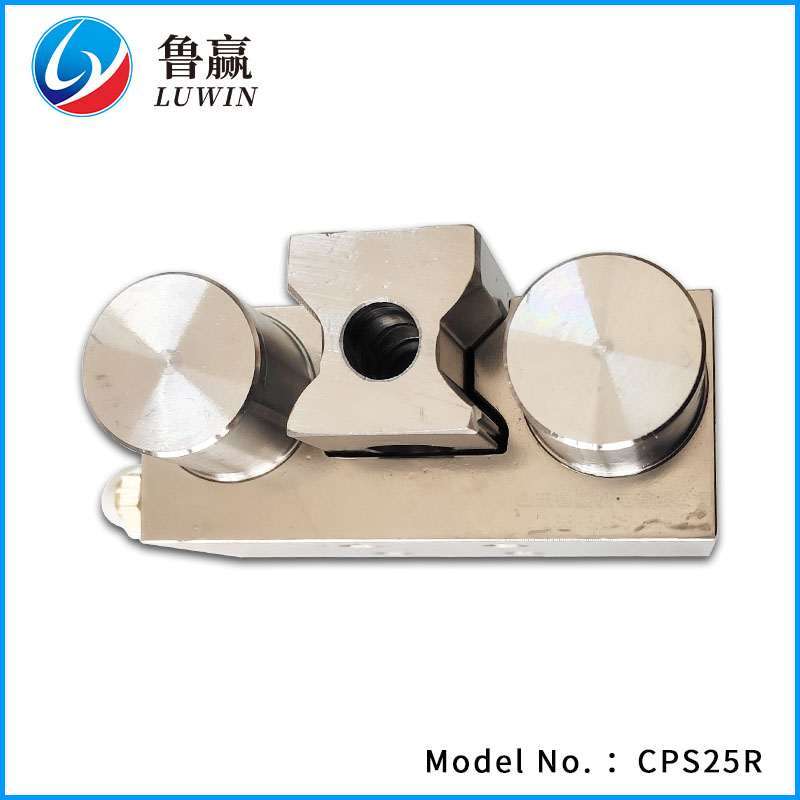

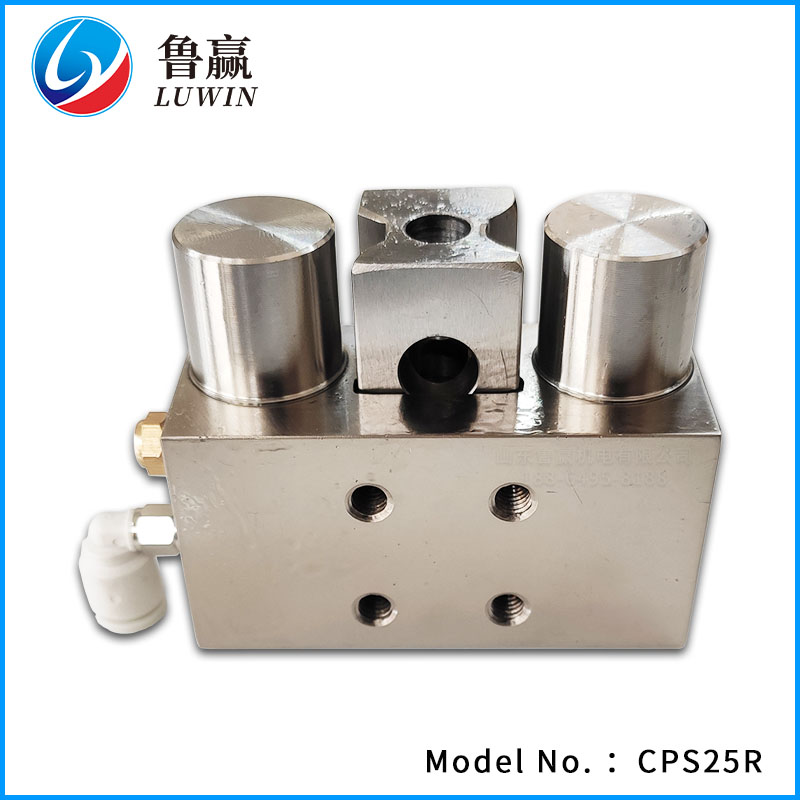

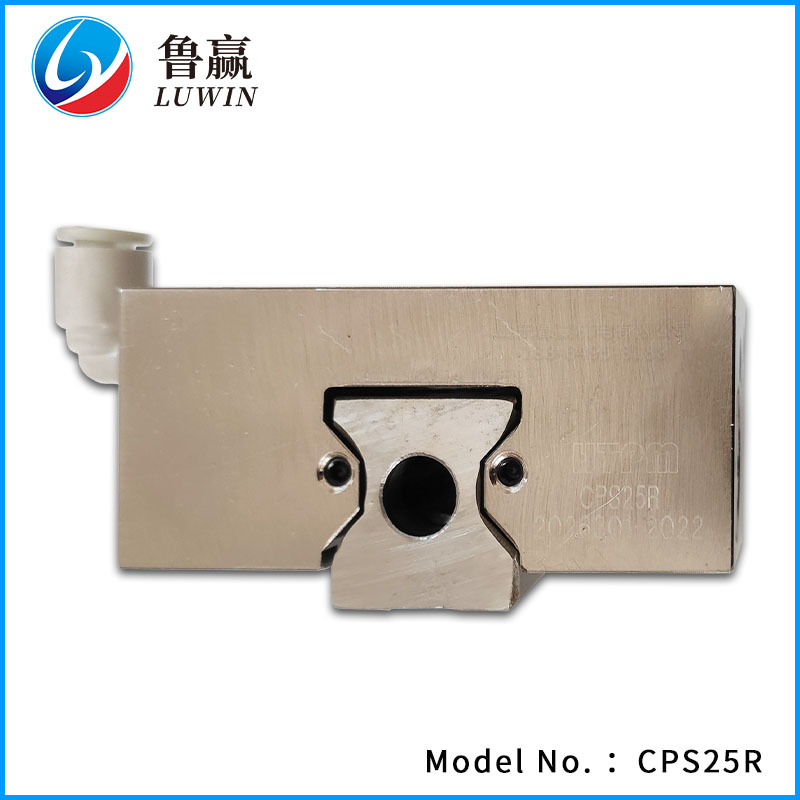

| 型号 | H | H1 | H2 | A | B | J1 | J2 | J3 | L | L1 | D | E | M | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPS35R CPS35R-04 |
48 | 55 | 5 | 100 | 34 | 24 | 24 | 36.5 | 69.5 | 42 | 4.5 | 11 | M8 | 10 |
| CPS45R CPS45R-04 |
60 | 70 | 9 | 120 | 45 | 26 | 26 | 42 | 82.5 | 51 | 4.5 | 16 | M10 | 15 |
| CPS55R CPS55R-04 |
70 | 80 | 10 | 128 | 53 | 30 | 30 | 42 | 82.5 | 51 | 4.5 | 20 | M10 | 18 |
| CPS65R CPS65R-04 |
90 | 13 | 138 | 63 | 30 | 30 | 42 | 82.5 | 51 | 4.5 | 21 | M10 | 19 | |
注：H11为钳制器与AN/HAN滑块配套使用加装安装垫板后的高度。“04”表示0.4MPa打开；无则表示0.55MPA打开。
